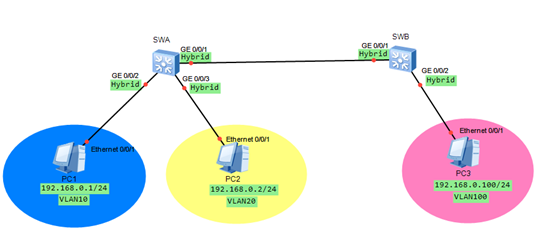

拓扑图

SWA配置

[SWA]vlan batch 10 20 100     //批量创建VLAN 10 20 100

Info: This operation may take a few seconds. Please wait for a moment…done.

[SWA]dis vlan

[SWA]int g0/0/2

[SWA-GigabitEthernet0/0/2]port hybrid untagged vlan 10 100    //配置端口untagged vlan10和100

[SWA-GigabitEthernet0/0/2]port hybrid pvid vlan 10    //修改端口pvid为vlan10

[SWA-GigabitEthernet0/0/2]int g0/0/3

[SWA-GigabitEthernet0/0/3]port hybrid untagged vlan 20 100

[SWA-GigabitEthernet0/0/3]port hybrid pvid vlan 20

[SWA-GigabitEthernet0/0/3]int g0/0/1

[SWA-GigabitEthernet0/0/1]port hybrid tagged vlan 10 20 100    //配置端口允许通过VLAN 10 20 100

[SWA-GigabitEthernet0/0/1]dis vlan

[SWA-GigabitEthernet0/0/1]dis port vlan active

SWB配置

[SWB]vlan batch 10 20 100

Info: This operation may take a few seconds. Please wait for a moment…done.

[SWB]int g0/0/2

[SWB-GigabitEthernet0/0/2]port hybrid untagged vlan 10 20 100

[SWB-GigabitEthernet0/0/2]port hybrid pvid vlan 100

[SWB-GigabitEthernet0/0/2]int g0/0/1

[SWB-GigabitEthernet0/0/1]port hybrid tagged vlan 10 20 100

[SWB]dis vlan

[SWB]dis port vlan active

完成后测试主机直接互通

Pc1可以ping通服务器不能ping通pc2

Pc2可以ping通服务器，不能ping通Pc1

实验完成
